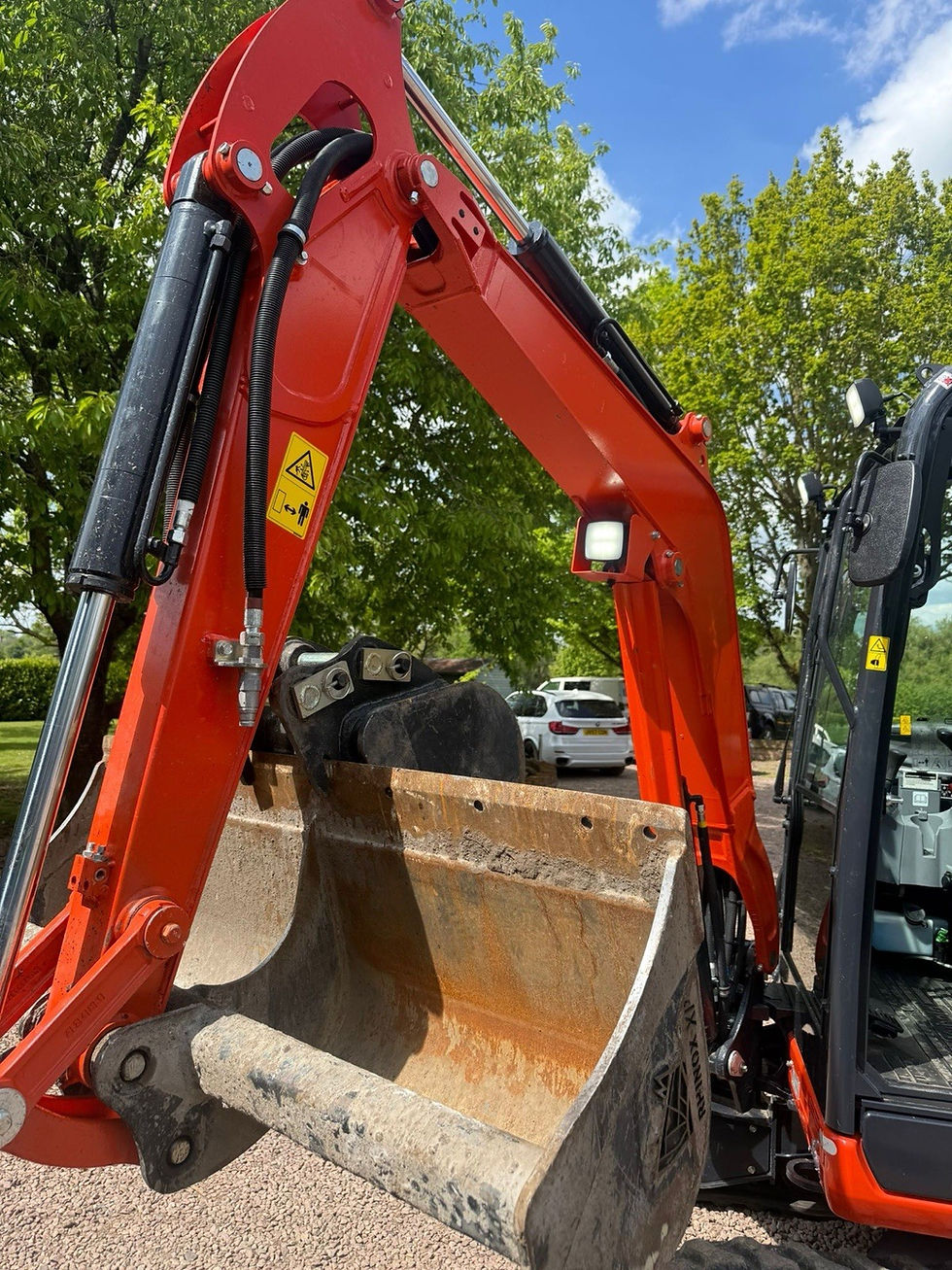

Kubota Digger u 27 - 4
A rare opportunity to own a virtually new Kubota U27-4
PLEASE CALL MCPLANT ON 07301 140722
Or 07534422022
These machines are now the choice of the Hire companies being offered superb warranty & support
Ask anyone who own or has used one of these & they all give great reviews
LOW RATE FINANCE OPTION
NATIONWIDE DELIVERY TO UK & IRELAND
PLUS VAT
INDUSTRY LEADING
OPERATORS COMFORT / CABIN
› Heater
› Manual air condition system*
› USB/Bluetooth Radio
› Armrests (adjustable)
› 12v outlets
› Wiper
› Sprayer f. wiper
› AUX 1 on Joystick
Aux piped
Optional new Nugent plant trailer @£4995
LOW RATE FINANCE OPTION
NATIONWIDE DELIVERY UK & IRELAND
PLUS VAT
The Kubota U27-4 is a 2.6–2.7 tonne zero-tail swing mini excavator designed for tight spaces, featuring a 21.6-horsepower diesel engine, a maximum digging depth of approx. 2.82 meters (9.25 ft), and a digging force of 21 kN (4,721 lbs). It features a 1.5-meter (4.9 ft) width, 4.19-meter (13.7 ft) transport length, and a spacious cabin with high-visibility displays.
I
Engine & Performance
Model: Kubota D1105-E4-BH-2 (Stage V compliant)
Power: 15.6 kW / 21.2 PS @ 2400 rpm
Engine Type: 3-cylinder diesel, water-cooled
Operating Weight: Approx. 2,590–2,665 kg (5,710–5,875 lbs)
Dimensions & Capacities
Max Dig Depth: 2,820 mm (9.25 ft)
Overall Width: 1,500 mm (4.9 ft)
Overall Height: 2,430 mm (7.97 ft)
Max Reach: 4,630 mm - 4,740 mm
Fuel Tank: 33 Litres (some models 45L)
Hydraulics & Functionality
Max Bucket Breakout Force: 21.0 kN (2,140 kgf)
Arm Tear-out Force: 12.3 kN (1,260 kgf)
Auxiliary Circuit Flow: 48 L/min (at 17.2 MPa)
Boom Swing Angle:
75
∘
7
5
∘
(left) /
55
∘
5
5
∘
(right)
Key Features
Zero-Tail Swing: High maneuverability in tight, urban jobsites.
Two Variable Pumps: Allows simultaneous operation of boom, arm, bucket, and swivel.
Safety: Standard ROPS/OPG cabin, anti-theft system, and 4-point tie-down.
Comfort: Wide entry, large cab, and adjustable, high-resolution monitor.
